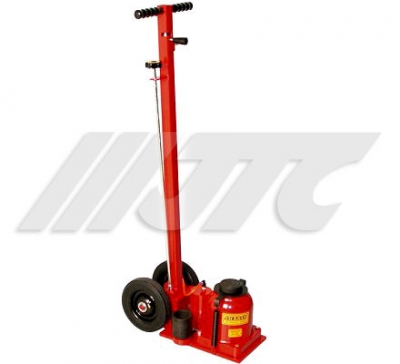

JTC-AJB500 貨車油壓千斤頂
JTC-AJB500 貨車油壓千斤頂
- Low profile design for most of industrial applications.
- Forging base as the strongest construction to catch the needs in industry market.
- Housing welding onto the forged base makes to be free of leakage problem as well.
- Telescopic design of AJ300 & AJ500 reaches the extra needed during operating to save
time and labor cost much. - Telescopic design of AJ120,AJ220,AJB1527 and AJB2035 reaches the extra height during operation to save time and costs.
- AJB1527,AJB2035,AJB300 and AJB500 equipped with two large Dia. Rubber wheels provide the greatest convenience and mobility you need.
- Air / Hydraulic design make you free pumping handle also with the most efficiency
and time saving.
| 編號Item | Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M |
Hose |
Handle Length |
Auxiliary Height |
|
| AJ120 | 12TON | 241 | 389.5 | 469.5 | 148.5 | 80 | 39.95 | 29.5 | 89 | 42 | 180 | 160 | 105 | 107 | 5" | 630 | - | |
| AJ220 | 22TON | 240.5 | 369.5 | 449.5 | 129 | 80 | 56 | 29.5 | 114 | 42 | 205 | 185 | 130 | 132 | 5" | 630 | - | |
| AJ300 | 30TON | 279 | 441 | - | 162 | - | 65 | - | 140 | - | 235 | - | - | - | 5" | 630 | - | |
| AJ500 | 50TON | 304 | 475 | - | 171 | - | 75 | - | 163 | 260 | - | - | - | 5" | 630 | - | ||
| BJ120 | 12TON | 241 | 389.5 | 469.5 | 148.5 | 80 | 39.95 | 29.5 | 89 | 42 | 507 | 460 | 105 | - | - | 630 | - | |
| BJ220 | 22TON | 240.5 | 369.5 | 449.5 | 129 | 80 | 56 | 29.5 | 114 | 42 | 507 | 185 | 130 | - | - | 630 | - | |
| BJ300 | 30TON | 279 | 441 | - | 162 | - | 65 | - | 140 | - | - | 235 | 150 | - | - | 630 | - | |
| BJ500 | 50TON | 304 | 475 | - | 171 | - | 75 | - | 163 | - | - | 260 | 180 | - | - | 630 | - | |
| AJB1527 | 15 | 27 | 205 | 291 | 377 | 86 | 86 | 460 | 1155 | - | - | - | - | - | - | 5" | - | 95 |
| AJB2035 | 20 | 35 | 205 | 291 | 377 | 86 | 86 | 490 | 1155 | - | - | - | - | - | - | 5" | - | 95 |
| AJB300 | 30TON | 247 | 367 | - | 120 | - | 460 | 1155 | - | - | - | - | - | - | 5" | - | 95 | |
| AJB500 | 50TON | 266 | 396 | - | 130 | - | 490 | 1155 | - | - | - | - | - | - | 5" | - | 95 | |
